Text Input File Examples

Any of the following may be reproduced by saving the example to a file and using the so-called text file or command line interface to process it (see Text File Interface and Command Line Interface for more information). When an output isn't specified in the file, this must be given in the Lisp function call or at the command line. Some examples are:

Example 9.17. Text Input Commands (From Lisp)


(fomus "/directory/file.fms") ; use values in file

(fomus "/directory/file.fms" :output :musicxml) ; output to MusicXML format

(fomus "/directory/file.fms" :output '(:lilypond :view t)) ; output to LilyPond and open for viewing


Example 9.18. Text Input Commands (Command Line)


# print help message
fomus -h

# use values in file
fomus /directory/file.fms

# output to MusicXML
fomus -x /directory/file.fms

# output to LilyPond and open for viewing
fomus -lw /directory/file.fms

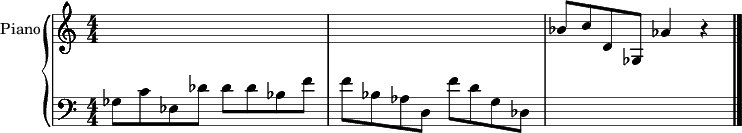

Example 9.19. Simple Text Input Example


INIT :output :lilypond
INIT :filename "/mydir/output"

PART 1 :name "Piano" :instr :piano

NOTE 1 :voice 1 :off 0 :dur 1/2 :note 54
NOTE 1 :voice 1 :off 1/2 :dur 1/2 :note 60
NOTE 1 :voice 1 :off 1 :dur 1/2 :note 51
NOTE 1 :voice 1 :off 3/2 :dur 1/2 :note 61
NOTE 1 :voice 1 :off 2 :dur 1/2 :note 61
NOTE 1 :voice 1 :off 5/2 :dur 1/2 :note 61
NOTE 1 :voice 1 :off 3 :dur 1/2 :note 58
NOTE 1 :voice 1 :off 7/2 :dur 1/2 :note 65
NOTE 1 :voice 1 :off 4 :dur 1/2 :note 65
NOTE 1 :voice 1 :off 9/2 :dur 1/2 :note 58
NOTE 1 :voice 1 :off 5 :dur 1/2 :note 56
NOTE 1 :voice 1 :off 11/2 :dur 1/2 :note 50
NOTE 1 :voice 1 :off 6 :dur 1/2 :note 65
NOTE 1 :voice 1 :off 13/2 :dur 1/2 :note 62
NOTE 1 :voice 1 :off 7 :dur 1/2 :note 55
NOTE 1 :voice 1 :off 15/2 :dur 1/2 :note 49
NOTE 1 :voice 1 :off 8 :dur 1/2 :note 70
NOTE 1 :voice 1 :off 17/2 :dur 1/2 :note 72
NOTE 1 :voice 1 :off 9 :dur 1/2 :note 62
NOTE 1 :voice 1 :off 19/2 :dur 1/2 :note 54
NOTE 1 :voice 1 :off 10 :dur 1 :note 68

Output

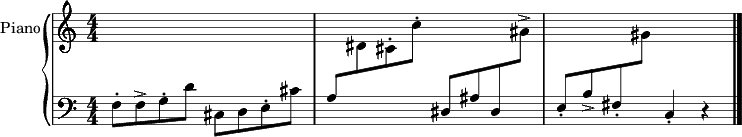

Example 9.20. Staccato and Accent Marks


INIT :output (:lilypond :view t)
INIT :filename "/tmp/output"

PART 1 :name "Piano" :instr :piano

NOTE 1 :voice 1 :off 0 :dur 0.5 :note 53 :marks (:staccato)
NOTE 1 :voice 1 :off 0.5 :dur 0.5 :note 53 :marks (:accent)
NOTE 1 :voice 1 :off 1 :dur 0.5 :note 55 :marks (:staccato)
NOTE 1 :voice 1 :off 1.5 :dur 0.5 :note 62
NOTE 1 :voice 1 :off 2 :dur 0.5 :note 49
NOTE 1 :voice 1 :off 2.5 :dur 0.5 :note 50
NOTE 1 :voice 1 :off 3 :dur 0.5 :note 52 :marks (:staccato)
NOTE 1 :voice 1 :off 3.5 :dur 0.5 :note 61

NOTE 1 :voice 1 :off 4 :dur 0.5 :note 57
NOTE 1 :voice 1 :off 4.5 :dur 0.5 :note 63
NOTE 1 :voice 1 :off 5 :dur 0.5 :note 61 :marks (:staccato)
NOTE 1 :voice 1 :off 5.5 :dur 0.5 :note 72 :marks (:staccato)
NOTE 1 :voice 1 :off 6 :dur 0.5 :note 51
NOTE 1 :voice 1 :off 6.5 :dur 0.5 :note 58
NOTE 1 :voice 1 :off 7 :dur 0.5 :note 51
NOTE 1 :voice 1 :off 7.5 :dur 0.5 :note 70 :marks (:accent)

NOTE 1 :voice 1 :off 8 :dur 0.5 :note 52 :marks (:staccato)
NOTE 1 :voice 1 :off 8.5 :dur 0.5 :note 59 :marks (:accent)
NOTE 1 :voice 1 :off 9 :dur 0.5 :note 54 :marks (:staccato)
NOTE 1 :voice 1 :off 9.5 :dur 0.5 :note 68
NOTE 1 :voice 1 :off 10 :dur 1 :note 48 :marks (:staccato)

Output

Example 9.21. Percussion


PART prc :name "Percussion" :instr (:percussion :percs ((MAKE-PERC :sym :woodblock :staff 1 :voice 1 :note e4 :autodur t :midinote-im nil :midinote-ex nil) \
                                                        (MAKE-PERC :sym :snaredrum :staff 1 :voice 1 :note a3 :autodur t :midinote-im nil :midinote-ex nil)))

NOTE prc :voice 1 :off 0 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 1/2 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 1 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 3/2 :dur 1/2 :note :snaredrum
NOTE prc :voice 1 :off 2 :dur 1/2 :note :snaredrum
NOTE prc :voice 1 :off 5/2 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 3 :dur 1/2 :note :snaredrum
NOTE prc :voice 1 :off 7/2 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 4 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 9/2 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 5 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 11/2 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 6 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 13/2 :dur 1/2 :note :snaredrum
NOTE prc :voice 1 :off 7 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 15/2 :dur 1/2 :note :snaredrum
NOTE prc :voice 1 :off 8 :dur 1/2 :note :snaredrum
NOTE prc :voice 1 :off 17/2 :dur 1/2 :note :snaredrum
NOTE prc :voice 1 :off 9 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 19/2 :dur 1/2 :note :woodblock
NOTE prc :voice 1 :off 10 :dur 1/2 :note :snaredrum

Output

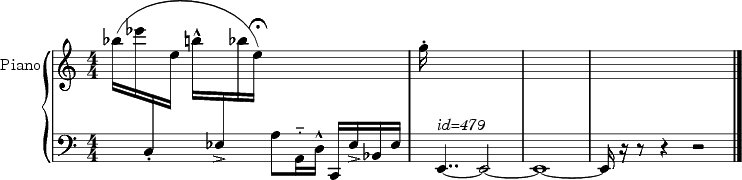

Example 9.22. Articulations


;; Example by Rob Canning

init :output (:lilypond :view t)

part 1 :name "Piano" :instr :piano
(note 1 :off 0 :dur 0.25 :note 82 :marks (:ignore))
(note 1 :off 0.25 :dur 0.25 :note 87 :marks (:ignore))
(note 1 :off 0.5 :dur 0.25 :note 48 :marks (:staccato))
(note 1 :off 0.75 :dur 0.25 :note 76 :marks (:ignore))
(note 1 :off 1 :dur 0.25 :note 83 :marks (:marcato))
(note 1 :off 1.25 :dur 0.25 :note 51 :marks (:accent))
(note 1 :off 1.5 :dur 0.25 :note 82 :marks (:ignore))
(note 1 :off 1.75 :dur 0.25 :note 76 :marks (:endslur- (:fermata)))
(note 1 :off 2 :dur 0.5 :note 57 :marks (:ignore))
(note 1 :off 2.5 :dur 0.25 :note 45 :marks (:portato))
(note 1 :off 2.75 :dur 0.25 :note 50 :marks (:marcato))
(note 1 :off 3 :dur 0.25 :note 36 :marks (:ignore))
(note 1 :off 3.25 :dur 0.25 :note 51 :marks (:accent))
(note 1 :off 3.5 :dur 0.25 :note 46 :marks (:ignore))
(note 1 :off 3.75 :dur 0.25 :note 51 :marks (:ignore))
(note 1 :off 4 :dur 0.25 :note 79 :marks (:staccato))
(note 1 :off 4.25 :dur 8 :note 40 :marks (:startslur- (:textnote "id=479")))

Output

Example 9.23. More Percussion


PART p1 :name "Perc" \
        :instr (:percussion :percs ((:snare-drum :note a3) \
                                    (:low-wood-block :note e4) (:high-wood-block :note g4) \
                                    (MAKE-PERC :rim-shot :staff 1 :voice 1 :note c4 :autodur t :midinote-im nil :midinote-ex 40))) \
        :opts (:midi-filename "part1")

NOTE p1 :voice 1 :off 1 :dur (1/2 -100) :note :snare-drum
NOTE p1 :voice 1 :off 1 :dur 1/2 :note :snare-drum :marks (:sf :accent)
NOTE p1 :voice 1 :off 5/2 :dur 1/2 :note :snare-drum :marks (:p)
NOTE p1 :voice 1 :off 4 :dur 1/2 :note :snare-drum
NOTE p1 :voice 1 :off 11/2 :dur 1/2 :note :snare-drum
NOTE p1 :voice 1 :off 6 :dur 1/2 :note :snare-drum :marks (:sf :accent)
NOTE p1 :voice 1 :off 15/2 :dur 1/2 :note :snare-drum
NOTE p1 :voice 1 :off 8 :dur 1/2 :note :snare-drum :marks (:sf :accent)
NOTE p1 :voice 1 :off 17/2 :dur 1/2 :note :snare-drum

NOTE p1 :voice 1 :off 10 :dur (1/2 -100) :note :high-wood-block
NOTE p1 :voice 1 :off 10 :dur 1/2 :note :low-wood-block
NOTE p1 :voice 1 :off 10.5 :dur 1/2 :note :low-wood-block
NOTE p1 :voice 1 :off 11 :dur 1/2 :note :low-wood-block
NOTE p1 :voice 1 :off 11.5 :dur 1/2 :note :low-wood-block
NOTE p1 :voice 1 :off 12 :dur 1/2 :note :high-wood-block :marks (:sf :accent)
NOTE p1 :voice 1 :off 12.5 :dur 1/2 :note :low-wood-block
NOTE p1 :voice 1 :off 13 :dur 1/2 :note :low-wood-block
NOTE p1 :voice 1 :off 13.5 :dur 1/2 :note :low-wood-block
NOTE p1 :voice 1 :off 14 :dur 1/2 :note :low-wood-block

Output

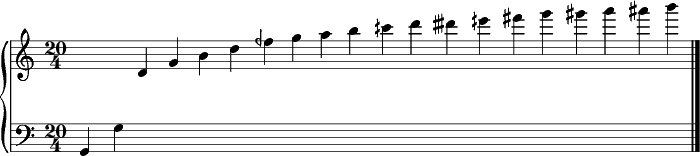

Example 9.24. Overtone Series (using Quartertones)


INIT :output '(:lilypond :view t)
INIT :filename "overser"
INIT :quartertones t

PART h :name nil :instr :piano

TIMESIG :off 0 :time (20 4)
NOTE h :voice 1 :off 0 :dur 1 :note 42.999996
NOTE h :voice 1 :off 1 :dur 1 :note 54.999996
NOTE h :voice 1 :off 2 :dur 1 :note 62.019547
NOTE h :voice 1 :off 3 :dur 1 :note 67.0
NOTE h :voice 1 :off 4 :dur 1 :note 70.86313
NOTE h :voice 1 :off 5 :dur 1 :note 74.01955
NOTE h :voice 1 :off 6 :dur 1 :note 76.688255
NOTE h :voice 1 :off 7 :dur 1 :note 79.0
NOTE h :voice 1 :off 8 :dur 1 :note 81.03909
NOTE h :voice 1 :off 9 :dur 1 :note 82.86313
NOTE h :voice 1 :off 10 :dur 1 :note 84.513176
NOTE h :voice 1 :off 11 :dur 1 :note 86.01955
NOTE h :voice 1 :off 12 :dur 1 :note 87.40528
NOTE h :voice 1 :off 13 :dur 1 :note 88.68826
NOTE h :voice 1 :off 14 :dur 1 :note 89.88269
NOTE h :voice 1 :off 15 :dur 1 :note 91.0
NOTE h :voice 1 :off 16 :dur 1 :note 92.04956
NOTE h :voice 1 :off 17 :dur 1 :note 93.03909
NOTE h :voice 1 :off 18 :dur 1 :note 93.97514
NOTE h :voice 1 :off 19 :dur 1 :note 94.86313

Output

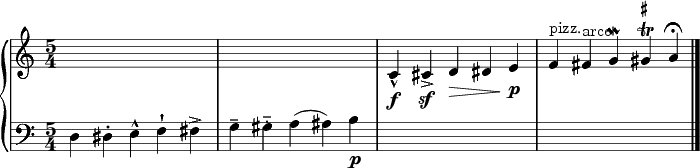

Example 9.25. Marks 1


INIT :output '(:lilypond :view t)
INIT :filename "marks1"

PART h :name nil :instr :piano

TIMESIG :off 0 :time (5 4)
NOTE h :voice 1 :off 0 :dur 1 :note 50 :marks (:IGNORE)
NOTE h :voice 1 :off 1 :dur 1 :note 51 :marks (:STACCATO)
NOTE h :voice 1 :off 2 :dur 1 :note 52 :marks (:MARCATO)
NOTE h :voice 1 :off 3 :dur 1 :note 53 :marks (:STACCATISSIMO)
NOTE h :voice 1 :off 4 :dur 1 :note 54 :marks (:ACCENT)
NOTE h :voice 1 :off 5 :dur 1 :note 55 :marks (:TENUTO)
NOTE h :voice 1 :off 6 :dur 1 :note 56 :marks (:PORTATO)
NOTE h :voice 1 :off 7 :dur 1 :note 57 :marks (:STARTSLUR-)
NOTE h :voice 1 :off 8 :dur 1 :note 58 :marks (:ENDSLUR-)
NOTE h :voice 1 :off 9 :dur 1 :note 59 :marks (:P)
NOTE h :voice 1 :off 10 :dur 1 :note 60 :marks (:F :MARCATO)
NOTE h :voice 1 :off 11 :dur 1 :note 61 :marks (:SF :ACCENT)
NOTE h :voice 1 :off 12 :dur 1 :note 62 :marks (:STARTWEDGE>)
NOTE h :voice 1 :off 13 :dur 1 :note 63
NOTE h :voice 1 :off 14 :dur 1 :note 64 :marks (:ENDWEDGE> :P)
NOTE h :voice 1 :off 15 :dur 1 :note 65 :marks (:PIZZ)
NOTE h :voice 1 :off 16 :dur 1 :note 66
NOTE h :voice 1 :off 17 :dur 1 :note 67 :marks (:MORDENT)
NOTE h :voice 1 :off 18 :dur 1 :note 68 :marks ((:TRILL 70))
NOTE h :voice 1 :off 19 :dur 1 :note 69 :marks (:FERMATA)

Output

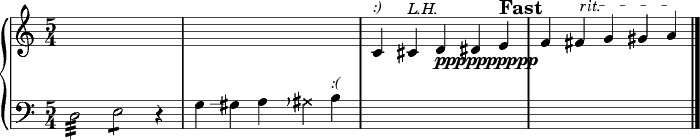

Example 9.26. Marks 2


INIT :output '(:lilypond :view t)
INIT :filename "marks2"

PART z :name nil :instr :piano

TIMESIG :off 0 :time (5 4)
NOTE z :voice 1 :off 0 :dur 2 :note 50 :marks (:tremolo)
NOTE z :voice 1 :off 2 :dur 2 :note 52 :marks ((:tremolo 1/2))
NOTE z :voice 1 :off 5 :dur 1 :note 55 :marks ((:glissando :after))
NOTE z :voice 1 :off 6 :dur 1 :note 56
NOTE z :voice 1 :off 7 :dur 1 :note 57 :marks ((:breath :after))
NOTE z :voice 1 :off 8 :dur 1 :note 58 :marks ((:notehead :x))
NOTE z :voice 1 :off 9 :dur 1 :note 59 :marks ((:textnote ":("))
NOTE z :voice 1 :off 10 :dur 1 :note 60 :marks ((:textnote ":)"))
NOTE z :voice 1 :off 11 :dur 1 :note 61 :marks ((:textnote "L.H."))
NOTE z :voice 1 :off 12 :dur 1 :note 62 :marks ((:textdyn "pppppppppp"))
NOTE z :voice 1 :off 13 :dur 1 :note 63
NOTE z :voice 1 :off 14 :dur 1 :note 64 :marks ((:texttempo "Fast"))
NOTE z :voice 1 :off 15 :dur 1 :note 65
NOTE z :voice 1 :off 16 :dur 1 :note 66 :marks ((:starttext- "rit." :up))
NOTE z :voice 1 :off 17 :dur 1 :note 67
NOTE z :voice 1 :off 18 :dur 1 :note 68
NOTE z :voice 1 :off 19 :dur 1 :note 69 :marks (:endtext-)

Output
