CL-GD - Use the GD Graphics library from Common Lisp




Abstract

CL-GD is a library for Common Lisp which provides an interface to the GD Graphics Library for the dynamic creation of images. It is based on UFFI and should thus be portable to all CL implementations supported by UFFI.

A version which also works with CLISP is available from http://ungil.com/cl-gd-clisp.tgz thanks to Carlos Ungil. Also, beginning from version 0.5.0/0.5.1, CL-GD contains initial code to support CLISP and OpenMCL via CFFI (thanks to Luis Oliveira and Bryan O'Connor). Please try it and report to the mailing list if you have problems.

The focus of CL-GD is convenience and correctness, not necessarily speed. If you think CL-GD is too slow and you're concerned about speed, contact me before you start coding in C... :)

CL-GD comes with a BSD-style license so you can basically do with it whatever you want. Please send bug reports to the mailing list mentioned below if you encounter any problems with CL-GD. (I'm glad to fix CL-GD but I can't do much about GD, of course. So if CL-GD basically works for you but you encounter seemingly strange behaviour when drawing please try if and how you can achieve the intended result with GD directly. That would help me a lot. Thanks.)

CL-GD is used by QuickHoney.

Download shortcut: http://weitz.de/files/cl-gd.tar.gz.




A simple example

The image to the right was created with this piece of code:
  (allocate-color 68 70 85) ; background color
  (let ((beige (allocate-color 222 200 81))
        (brown (allocate-color 206 150 75))
        (green (allocate-color 104 156 84))
        (red (allocate-color 163 83 84))
        (white (allocate-color 255 255 255))
        (two-pi (* 2 pi)))
    ;; move origin to center of image
    (with-transformation (:x1 -100 :x2 100 :y1 -100 :y2 100 :radians t)
      ;; draw some 'pie slices'
      (draw-arc 0 0 130 130 0 (* .6 two-pi)
                :center-connect t :filled t :color beige)
      (draw-arc 0 0 130 130 (* .6 two-pi) (* .8 two-pi)
                :center-connect t :filled t :color brown)
      (draw-arc 0 0 130 130 (* .8 two-pi) (* .95 two-pi)
                :center-connect t :filled t :color green)
      (draw-arc 0 0 130 130 (* .95 two-pi) two-pi
                :center-connect t :filled t :color red)
      (with-default-color (white)
        (with-default-font (:small)
          (draw-string -8 -30 "60%")
          (draw-string -20 40 "20%")
          (draw-string 20 30 "15%"))
        (draw-freetype-string -90 75 "Global Revenue"
                              ;; this assumes that 'DEFAULT_FONTPATH'
                              ;; is set correctly
                              :font-name "verdanab"))))
  (write-image-to-file "chart.png"
                       :compression-level 6 :if-exists :supersede))

See below for more examples.


Contents




Download and installation

CL-GD together with this documentation can be downloaded from http://weitz.de/files/cl-gd.tar.gz. The current version is 0.5.7. A Debian package is available thanks to Peter van Eynde and Kevin Rosenberg, so if you're on Debian you should have no problems installing CL-GD. There's also a port for Gentoo Linux thanks to Matthew Kennedy. Otherwise, proceed like this:

Note that CL-GD might work correctly even if some of the tests fail (as long as you don't get error messages). The exact results of the tests seem to depend on the versions of the C libraries which are used.

It is recommended that you at least skim over the original GD documentation before you start using CL-GD.

Note: If you're on Windows you might want to try this:

This works for me on Windows XP pro SP2 with AllegroCL 6.2 trial as well as with LispWorks 4.3.7 pro.

Luís Oliveira maintains a darcs repository of CL-GD at http://common-lisp.net/~loliveira/ediware/.


Support and mailing lists

For questions, bug reports, feature requests, improvements, or patches please use the cl-gd-devel mailing list. If you want to be notified about future releases subscribe to the cl-gd-announce mailing list. These mailing lists were made available thanks to the services of common-lisp.net.

If you want to send patches, please read this first.


Images

In order to work with CL-GD you first have to create at least one image - think of it as your canvas, kind of. Images can be created from scratch or you can load an existing image file from disk. After you've drawn something or otherwise modified your image you can write it to a file or a stream. Once you're done with it you must destroy it to avoid memory leaks. It is recommended that you use the WITH-IMAGE- macros instead of the CREATE-IMAGE- functions so you can be sure that images will always be destroyed no matter what happens.


[Function]
create-image width height &optional true-color => image


Allocates and returns an image with size width x height (in pixels). Creates a true color image if true-color is true - the default is NIL. You are responsible for destroying the image after you're done with it. It is advisable to use WITH-IMAGE instead.


[Function]
create-image-from-file file-name &optional type => image


Creates an image from the file specified by file-name (which is either a pathname or a string). The type of the image can be provided as type (one of the keywords :JPG, :JPEG, :GIF, :PNG, :GD, :GD2, :XBM, or :XPM), or otherwise it will be guessed from the PATHNAME-TYPE of file-name. You are responsible for destroying the image after you're done with it. It is advisable to use WITH-IMAGE-FROM-FILE instead.


[Function]
create-image-from-gd2-part file-name src-x src-y width height => image


Creates an image from the part of the GD2 file specified by file-name (which is either a pathname or a string) specified by src-x, src-y, width, and height. You are responsible for destroying the image after you're done with it. It is advisable to use WITH-IMAGE-FROM-GD2-PART instead.


[Function]
destroy-image image => result


Destroys (deallocates) image which has been created by CREATE-IMAGE, CREATE-IMAGE-FROM-FILE, or CREATE-IMAGE-FROM-GD2-PART. result is always NIL.


[Macro]
with-image (name width height &optional true-color) form* => results


Creates an image as with CREATE-IMAGE and executes form* with the image bound to name. The image is guaranteed to be destroyed before this macro exits.


[Macro]
with-image-from-file (name file-name &optional type) form* => results


Creates an image as with CREATE-IMAGE-FROM-FILE and executes form* with the image bound to name. The image is guaranteed to be destroyed before this macro exits.
(with-image-from-file (old "zappa.jpg")zappa-green.jpgzappa.jpg
  (multiple-value-bind (width height)
      (image-size old)
    (with-image (new width height)
      (allocate-color 0 255 0 :image new) ; green background
      (copy-image old new 0 0 0 0 width height
                  :merge 50)
      (write-image-to-file "zappa-green.jpg"
                           :image new
                           :if-exists :supersede))))


[Macro]
with-image-from-gd2-part (name file-name src-x src-y width height) form* => results


Creates an image as with CREATE-IMAGE-FROM-GD2-PART and executes form* with the image bound to name. The image is guaranteed to be destroyed before this macro exits.


[Special variable]
*default-image*


Whenever a CL-GD function or macro has an optional or keyword argument called image the default is to use *default-image*. The idea behind this is that you'll never have to provide these arguments as long as you work with one image at a time (which should be the usual case). See the example at the top of the page.


[Macro]
with-default-image (image) form* => results


This is just a convenience macro which will execute form* with *DEFAULT-IMAGE* bound to image.


[Macro]
with-image* (width height &optional true-color) form* => results


[Macro]
with-image-from-file* (file-name &optional type) form* => results


[Macro]
with-image-from-gd2-part* (file-name src-x src-y width height) form* => results


These are essentially like their asterisk-less counterparts but bind the image to *DEFAULT-IMAGE* instead.

For the rest of this document, whenever a function expects an image as one of its arguments you must pass a value which was created with one of the functions or macros above. An image should be considered an opaque object which you can pass to CL-GD functions but should otherwise leave alone. (Internally it is a foreign pointer wrapped in a CL-GD::IMAGE structure in order to enable type checking.)


[Function]
write-jpeg-to-stream stream &key quality image => image


Writes image image to the stream stream as a JPEG file. If quality is not specified, the default IJG JPEG quality value is used. Otherwise, quality must be an integer in the range 0-100. stream must be a character stream or a binary stream of element type (UNSIGNED-BYTE 8). If STREAM is a character stream, the user of this function has to make sure the external format yields faithful output of all 8-bit characters. CL-GD knows about AllegroCL's simple streams and the bivalent streams of LispWorks 4.3 and acts accordingly, i.e. it uses WRITE-BYTE instead of WRITE-CHAR whenever possible.


[Function]
write-png-to-stream stream &key compression-level image => image


Writes image image to the stream stream as a PNG file. If compression-level is not specified, the default compression level at the time zlib was compiled on your system will be used. Otherwise, a compression level of 0 means 'no compression', a compression level of 1 means 'compressed, but as quickly as possible', a compression level of 9 means 'compressed as much as possible to produce the smallest possible file.' stream must be a character stream or a binary stream of element type (UNSIGNED-BYTE 8). If STREAM is a character stream, the user of this function has to make sure the external format yields faithful output of all 8-bit characters. CL-GD knows about AllegroCL's simple streams and the bivalent streams of LispWorks 4.3 and acts accordingly, i.e. it uses WRITE-BYTE instead of WRITE-CHAR whenever possible.


[Function]
write-wbmp-to-stream stream &key foreground image => image


Writes image image to the stream stream as a WBMP (wireless bitmap) file. WBMP file support is black and white only. The color specified by the foreground argument is the "foreground," and only pixels of this color will be set in the WBMP file. stream must be a character stream or a binary stream of element type (UNSIGNED-BYTE 8). If STREAM is a character stream, the user of this function has to make sure the external format yields faithful output of all 8-bit characters. CL-GD knows about AllegroCL's simple streams and the bivalent streams of LispWorks 4.3 and acts accordingly, i.e. it uses WRITE-BYTE instead of WRITE-CHAR whenever possible.


[Function]
write-gd-to-stream stream &key image => image


Writes image image to the stream stream as a GD file. stream must be a character stream or a binary stream of element type (UNSIGNED-BYTE 8). If STREAM is a character stream, the user of this function has to make sure the external format yields faithful output of all 8-bit characters. CL-GD knows about AllegroCL's simple streams and the bivalent streams of LispWorks 4.3 and acts accordingly, i.e. it uses WRITE-BYTE instead of WRITE-CHAR whenever possible.


[Function]
write-gif-to-stream stream &key image => image


Writes image image to the stream stream as a GIF file. stream must be a character stream or a binary stream of element type (UNSIGNED-BYTE 8). If STREAM is a character stream, the user of this function has to make sure the external format yields faithful output of all 8-bit characters. CL-GD knows about AllegroCL's simple streams and the bivalent streams of LispWorks 4.3 and acts accordingly, i.e. it uses WRITE-BYTE instead of WRITE-CHAR whenever possible.


[Function]
write-gd2-to-stream stream &key image => image


Writes image image to the stream stream as a GD2 file. stream must be a character stream or a binary stream of element type (UNSIGNED-BYTE 8). If STREAM is a character stream, the user of this function has to make sure the external format yields faithful output of all 8-bit characters. CL-GD knows about AllegroCL's simple streams and the bivalent streams of LispWorks 4.3 and acts accordingly, i.e. it uses WRITE-BYTE instead of WRITE-CHAR whenever possible.


[Function]
write-image-to-stream stream type &key &allow-other-keys => image


Writes image image to the stream stream. The type of the image is determined by type which must be one of the keywords :JPG, :JPEG, :GIF, :PNG, :WBMP, :GD, or :GD2. The rest of the keyword arguments are handed over to the corresponding WRITE-XXX-TO-STREAM function. stream must be a character stream or a binary stream of element type (UNSIGNED-BYTE 8). If STREAM is a character stream, the user of this function has to make sure the external format yields faithful output of all 8-bit characters. CL-GD knows about AllegroCL's simple streams and the bivalent streams of LispWorks 4.3 and acts accordingly, i.e. it uses WRITE-BYTE instead of WRITE-CHAR whenever possible.


[Function]
write-image-to-file file-name &key type if-exists &allow-other-keys => image


Writes image image to the file specified by file-name (which is either a pathname or a string). The type argument is interpreted as in WRITE-IMAGE-TO-STREAM. If it is not provided it will be guessed from the PATHNAME-TYPE of file-name. The if-exists keyword argument is given to OPEN, the rest of the keyword arguments are handed over to the corresponding WRITE-XXX-TO-STREAM function.


[Function]
image-width &optional image => width


Returns the width of the image image. The result of this function is affected by WITH-TRANSFORMATION.


[Function]
image-height &optional image => height


Returns the height of the image image. The result of this function is affected by WITH-TRANSFORMATION.


[Function]
image-size &optional image => width, height


Returns the width and height of the image image as two values. The results of this function are affected by WITH-TRANSFORMATION.



Colors

Images in CL-GD are usually palette-based (although true color images are also supported) and colors have to be allocated before they can be used, i.e. whenever a function expects a color as one of its arguments you must pass a value which was created with one of the functions below or with a 'special' color as described in the next section.

Colors are determined by specifying values for their red, green, blue, and optionally alpha components. The first three have to be integer values in the range 0-255 while the last one has to be in the range 0-127. For a palette-based image the first color you allocate will be its background color. Note that colors are allocated per image, i.e. you can't allocate a color in one image and then use it to draw something in another image.

See also the next section for some 'special colors.'


[Special variable]
*default-color*


Whenever a CL-GD function or macro has an optional or keyword argument called color the default is to use *default-color*. See WITH-DEFAULT-COLOR below.


[Macro]
with-default-color (color) form* => results


This is just a convenience macro which will execute form* with *DEFAULT-COLOR* bound to color.


[Function]
allocate-color red green blue &key alpha errorp image => color


Finds the first available color index in the image image specified, sets its RGB values to those requested (255 is the maximum for each), and returns the index of the new color table entry, or an RGBA value in the case of a true color image. In either case you can then use the returned value as a color parameter to drawing functions. When creating a new palette-based image, the first time you invoke this function you are setting the background color for that image. If alpha (not greater than 127) is provided, an RGBA color will always be allocated. If all +MAX-COLORS+ have already been allocated this function will, depending on the value of errorp, either raise an error or return NIL. The default is to raise an error.


[Function]
find-color red green blue &key alpha exact hwb resolve image => color


Tries to find and/or allocate a color from image's color palette. If exact is true, the color will only be returned if it is already allocated. If exact is false, a color which is 'close' to the color specified by red, green, and blue (and probably alpha) might be returned (unless there aren't any colors allocated in the image yet). If hwb is true, the 'closeness' will be determined by hue, whiteness, and blackness, otherwise by the Euclidian distance of the RGB values. If resolve is true a color (probably a new one) will always be returned, otherwise the result of this function might be NIL. If alpha (not greater than 127) is provided, an RGBA color (or NIL) will be returned. alpha, exact, and hwb are mutually exclusive. resolve can't be used together with exact or hwb.


[Function]
find-color-from-image color source-image &key alpha exact hwb resolve image => color


Tries to find and/or allocate a color from image's color palette that corresponds to color in source-image. find-color-from-image calls find-color with the color components of color. Refer to find-color for a description of the keyword arguments.


[Function]
color-component component color &key image => component


Returns the specified color component of color. component can be one of :RED, :GREEN, :BLUE, and :ALPHA.


[Function]
color-components color &key image => components


Returns the color components of color as a list. The components are in the order red, green, blue, alpha.
* (defun foo ()
    (with-image* (10 10)
      (loop for i below +max-colors+ do
            ;; allocate enough colors (all gray) to fill the palette
            (allocate-color i i i))
      (format t "Number of colors allocated: ~A~%" (number-of-colors))
      (format t "Maximal number of colors: ~A~%" +max-colors+)
      (format t "Exact match for red: ~A~%" (find-color 255 0 0 :exact t))
      (format t "Red, green, and blue components of 'closest' match for red: ~A~%"
              (let ((match (find-color 255 0 0)))
                (if match
                  (list (color-component :red match)
                        (color-component :green match)
                        (color-component :blue match))))))
    (values))

FOO
* (foo)
Number of colors allocated: 256
Maximal number of colors: 256
Exact match for red: NIL
Red, green, and blue components of 'closest' match for red: (64 64 64)


[Function]
deallocate-color color &optional image => color


Marks the specified color color as being available for reuse. No attempt will be made to determine whether the color index is still in use in the image image.


[Function]
true-color-p &optional image => result


Returns true iff image is a true color image.


[Function]
number-of-colors &optional image => result


Returns the number of colors allocated in image or NIL if image is a true color image.


[Constant]
+max-colors+


Maximum number of colors for palette-based images.


[Accessor]
transparent-color &optional image => color
(setf (transparent-color &optional image) color)


Gets and sets the transparent color of image. If color is NIL there is no transparent color.


[Accessor]
alpha-blending-p &optional image => blending
(setf (alpha-blending-p &optional image) blending)


Gets and set whether pixels drawn on image will be copied literally including alpha channel information (if blending is false) or if their alpha channel information will determine how much of the underlying color will shine through (if blending is true). This is only meaningful for true color images.


[Accessor]
save-alpha-p &optional image => save
(setf (save-alpha-p &optional image) save)


Gets and sets whether PNG images will be saved with full alpha channel information.
(with-image* (200 100)brushed-arc.png
  (allocate-color 255 165 0) ; orange background
  (with-image (brush 6 6)
    (let* ((black (allocate-color 0 0 0 :image brush)) ; black background
           (red (allocate-color 255 0 0 :image brush))
           (blue (allocate-color 0 0 255 :image brush)))
      (setf (transparent-color brush) black) ; make background transparent
      ;; now set the pixels in the brush
      (set-pixels '(2 2 2 3 3 2 3 3)
                  :color blue :image brush)
      (set-pixels '(3 2 3 3 1 2 1 3 4 2 4 3 2 1 3 1 2 4 3 4)
                  :color red :image brush)
      ;; then use it to draw an arc
      (draw-arc 100 50 180 80 180 300
                ;; convert BRUSH to brush
                :color (make-brush brush)))
  (write-image-to-file "brushed-arc.png"
                       :compression-level 7
                       :if-exists :supersede)))



Styles, brushes, tiles, anti-aliased lines

Most drawing and string functions (with DRAW-FREETYPE-STRING being the only exception) will, when expecting a color, also accept other types of arguments. The full range of allowed types which can be used for color keyword arguments is listed below: Note that you can't arbitrarily combine 'color types' and drawing functions, e.g. you can't set an anti-aliased pixel. However, it should generally be obvious which types make sense and which don't. Check the original GD documentation for more details.

In GD itself, if you, say, change a brush after you've 'set' it with gdImageSetBrush but before you actually use it for drawing these changes won't be visible, i.e. the brush is 'frozen' once it's 'set.' The same applies to tiles and styles. CL-GD's behaviour differs in this regard, i.e. brushes, tiles, and styles are 'set' at the very moment they're used. This introduces a little bit of overhead but feels more 'Lisp-y' and intuitive to me.


[Function]
make-brush image => brush


Creates a brush from the image image. Note that the new brush is still 'linked' to image, i.e. changes you make to image will also be visible in the brush - the brush is just a kind of 'tagged' image.


[Function]
make-tile image => tile


Creates a tile from the image image. Note that the new tile is still 'linked' to image, i.e. changes you make to image will also be visible in the tile - the tile is just a kind of 'tagged' image.


[Function]
make-anti-aliased color &optionaldo-not-blend => color'


Creates an anti-aliased color from the color color. do-not-blend (if provided) is the color anti-aliased lines stand out against clearly.
(with-image* (150 50)anti-aliased-lines.png
  (let ((orange (allocate-color 255 165 0)) ; orange background
        (white (allocate-color 255 255 255))
        (red (allocate-color 255 0 0)))
    ;; white background rectangle in the middle third
    (draw-rectangle* 50 0 99 49
                    :filled t
                    :color white)
    (with-thickness (2)
      ;; just a red line
      (draw-line 5 10 145 10 :color red)
      ;; anti-aliased red line
      (draw-line 5 25 145 25 :color (make-anti-aliased red))
      ;; anti-aliased red line which should stand out against
      ;; orange background
      (draw-line 5 40 145 40 :color (make-anti-aliased red orange))))
  (write-image-to-file "anti-aliased-lines.png"
                       :compression-level 3
                       :if-exists :supersede))



Transformations

Usually, CL-GD coordinates and dimensions (width and height) have to be integers. The origin (0,0) of an image is its upper left corner and all other points like (X,Y) have positive X and Y values. Angles are also provided as integers (in the range 0-360) meaning degrees. A transformation provides a way to change this.


[Macro]
with-transformation (&key x1 x2 width y1 y2 height reverse-x reverse-y radians image) form* => results


Executes form* such that all points and width/height data are subject to a simple affine transformation defined by the keyword parameters. The new x-axis of image will start at x1 and end at x2 and have length width. The new y-axis of image will start at y1 and end at y2 and have length height. In both cases it suffices to provide two of the three values - if you provide all three they have to match. If reverse-x is false the x-axis will be oriented as usual in Cartesian coordinates, otherwise its direction will be reversed. The same applies to reverse-y, of course. If radians is true angles inside of the macro's body will be assumed to be provided in radians, otherwise in degrees. The previous transformation (if any) will be restored before this macro exits.

with-transformation macros can be nested but they always transform the original coordinates of the image, i.e. you shouldn't expect that, say, two succesive applications of reverse-x will neutralize each other. There's a little bit of overhead involved with this macro, so it is recommended to wrap it around everything you do with an image instead of calling it repeatedly. Note that transformations are always bound to one particular image.


[Macro]
without-transformations form* => results


Executes form* without any transformations applied.



Drawing and filling

This section (and the next one about strings) finally describes how you can actually change the visual appearance of an image. You can set single pixels, draw lines or geometric figures, and fill regions. Note that the current transformation (if any) applies to the input and output of these functions.


[Function]
get-pixel x y &key image => color


Returns the color of the pixel specified by x and y.


[Function]
set-pixel x y &key color image => x, y


Sets the pixel specified by x and y to the color specified by color.


[Generic function]
set-pixels points &key color image => points


Sets the pixels specified by points which can be a list (X1 Y1 X2 Y2 ...) or a vector #(X1 Y1 X2 Y2 ...) to the color specified by color.


[Function]
draw-line x1 y1 x2 y2 &key color image => x1, y1, x2, y2


Draws a line with color color from point (x1,y1) to point (x2,y2).


[Function]
draw-rectangle rectangle &key filled color image => rectangle


Draws a rectangle with upper left corner (X1,Y1) and lower right corner (X2,Y2) where rectangle is the list (X1 Y2 X2 Y2). If filled is true the rectangle will be filled with color, otherwise it will be outlined.


[Function]
draw-rectangle* x1 y1 x2 y2 &key filled color image => x1, y1, x2, y2


Draws a rectangle with upper left corner (x1,y1) and lower right corner (x2,y2). If filled is true the rectangle will be filled with color, otherwise it will be outlined.


[Generic function]
draw-polygon vertices &key filled start end color image => vertices


Draws a polygon with the vertices (at least three) specified as a list (X1 Y1 X2 Y2 ...) or as a vector #\(X1 Y1 X2 Y2 ...). If filled is true the polygon will be filled with the color color, otherwise it will be outlined. If start and/or end are specified then only the corresponding part of vertices is used as input.
(with-image* (100 100)triangle.png
  (allocate-color 255 255 255) ; white background
  (let ((red (allocate-color 255 0 0))
        (yellow (allocate-color 255 255 0))
        (orange (allocate-color 255 165 0)))
    ;; thin black border
    (draw-rectangle* 0 0 99 99
                     :color (allocate-color 0 0 0))
    ;; line thickness is five pixels
    (with-thickness (5)
      ;; triangle
      (draw-polygon (list 10 10 90 50 50 90)
                    ;; styled color
                    :color (list red red red
                                 yellow yellow yellow
                                 nil nil nil
                                 orange orange orange))
      (write-image-to-file "triangle.png"
                           :compression-level 8
                           :if-exists :supersede))))


[Function]
draw-filled-circle center-x center-y radius &key color image => center-x center-y radius


Draws a filled circle with center (center-x,center-y) and radius radius.


[Function]
draw-filled-ellipse center-x center-y width height &key color image => center-x center-y width height


Draws a filled ellipse with center (center-x,center-y), width width, and height height.
(with-image* (250 150)
  (with-image-from-file (zappa "smallzappa.png")zappa-ellipse.png
    (setf (transparent-color) (allocate-color 255 255 255))
    (draw-filled-ellipse 125 75 250 150
                         :color (make-tile zappa)))
  (write-image-to-file "zappa-ellipse.png"
                       :if-exists :supersede))


[Function]
draw-arc center-x center-y width height start end &key straight-line center-connect filled color image => center-x, center-y, width, height, start, end


Draws a partial ellipse centered at (center-x,center-y) with width width and height height. The arc begins at angle start and ends at angle end. If straight-line is true the start and end points are just connected with a straight line. If center-connect is true, they are connected to the center (which is useful to create 'pie slices' - see example at the top of the page.). If filled is true the arc will be filled with the color color, otherwise it will be outlined.


[Function]
fill-image x y &key border color image => x, y


Floods a portion of the image image with the color color beginning at point (x,y) and extending into the surrounding region. If border is true it must be a color and the filling will stop at the specified border color. (You can't use 'special colors' for the border color.) Otherwise only points with the same color as the starting point will be colored. If color is a tile the tile must not have a transparent color.


[Accessor]
clipping-rectangle &optional image => rectangle
(setf (clipping-rectangle &optional image) rectangle)


Gets and sets the clipping rectangle of image where rectangle should be a list (X1 Y1 X2 Y2) describing the upper left and lower right corner of the rectangle. Once a clipping rectangle has been set, all future drawing operations on image will remain within the specified clipping area, until a new clipping rectangle is established. For instance, if a clipping rectangle (25 25 75 75) has been set within a 100x100 image, a diagonal line from (0,0) to (99,99) will appear only between (25,25) and (75,75). See also CLIPPING-RECTANGLE* and SET-CLIPPING-RECTANGLE*.


[Function]
clipping-rectangle* &optional image => x1, y1, x2, y2


Returns the clipping rectangle of image as four values.


[Function]
set-clipping-rectangle* x1 y1 x2 y2 &optional image => x1, y1, x2, y2


Sets the clipping rectangle of image as if set with (SETF (CLIPPING-RECTANGLE IMAGE) (LIST X1 Y1 X2 Y2)).


[Macro]
with-clipping-rectangle (rectangle &key image) form* => results


Executes form* with the clipping rectangle of image set to rectangle which should be a list as in CLIPPING-RECTANGLE. The previous clipping rectangle is guaranteed to be restored before the macro exits.


[Macro]
with-clipping-rectangle* (x1 y1 x2 y2 &key image) form* => results


Executes form* with the clipping rectangle of image set as if set with (SETF (CLIPPING-RECTANGLE IMAGE) (LIST X1 Y1 X2 Y2)). The previous clipping rectangle is guaranteed to be restored before the macro exits.
(with-image* (150 150)clipped-tangent.png
  (allocate-color 255 255 255) ; white background
  ;; transform such that x axis ranges from (- PI) to PI and y
  ;; axis ranges from -3 to 3
  (with-transformation (:x1 (- pi) :width (* 2 pi) :y1 -3 :y2 3)
    (let ((black (allocate-color 0 0 0))
          (red (allocate-color 255 0 0))
          (rectangle (list (- .4 pi) 2.5 (- pi .4) -2.5)))
      (with-default-color (black)
        ;; draw axes
        (draw-line 0 -3 0 3 :color black)
        (draw-line (- pi) 0 pi 0))
      ;; show clipping rectangle (styled)
      (draw-rectangle rectangle :color (list black black black nil black nil))
      (with-clipping-rectangle (rectangle)
        ;; draw tangent function
        (loop for x from (- pi) below (* 2 pi) by (/ pi 75) do
              (set-pixel x (tan x) :color red)))))
  (write-image-to-file "clipped-tangent.png"
                       :if-exists :supersede))


[Accessor]
current-thickness &optional image => thickness
(setf (current-thickness &optional image) thickness)


Get and sets the current thickness of image in pixels. This determines the width of lines drawn with the drawing functions. thickness has to be an integer. See also WITH-THICKNESS.


[Macro]
with-thickness (thickness &key image) form* => results


Executes form* with the current thickness of image set to thickness. The image's previous thickness is guaranteed to be restored before the macro exits.



Characters and strings

CL-GD (actually GD) comes with five included fonts which can be accessed with the keywords :TINY, :SMALL, :MEDIUM, :MEDIUM-BOLD (a synonym for :MEDIUM), :LARGE, and :GIANT and used with DRAW-STRING and DRAW-CHARACTER. Using these fonts will make your application portable to all platforms supported by CL-GD (and thus GD). You can also invoke the FreeType library to draw (anti-aliased) strings with arbitrary TrueType fonts, sizes, and angles. This is, however, subject to the availability and location of the corresponding fonts on your target platform.


[Special variable]
*default-font*


Whenever a CL-GD string or character function has an optional or keyword argument called font or font-name the default is to use *default-font*. See WITH-DEFAULT-FONT below.


[Macro]
with-default-font (font) form* => results


This is just a convenience macro which will execute form* with *DEFAULT-FONT* bound to font. But note that the fonts used for DRAW-STRING/DRAW-CHARACTER and DRAW-FREETYPE-STRING are incompatible


[Function]
draw-character x y char &key up font color image => char


Draws the character char from font font in color color at position (x,y). If up is true the character will be drawn from bottom to top (rotated 90 degrees). font must be one of the keywords listed above.


[Function]
draw-string x y string &key up font color image => string


Draws the string string in color color at position (y,y). If up is true the string will be drawn from bottom to top (rotated 90 degrees). font must be one of the keywords listed above.


[Function]
draw-freetype-string x y string &key anti-aliased point-size angle convert-chars line-spacing font-name do-not-draw color image => bounding-rectangle


Draws the string string in color color at position (x,y) using the FreeType library. font-name is the full path (a pathname or a string) to a TrueType font file, or a font face name if the GDFONTPATH environment variable or FreeType's DEFAULT_FONTPATH variable have been set intelligently. The string may be arbitrarily scaled (point-size) and rotated (angle in radians). The direction of rotation is counter-clockwise, with 0 radians (0 degrees) at 3 o'clock and (/ PI 2) radians (90 degrees) at 12 o'clock. Note that the angle argument is purposefully not affected by WITH-TRANSFORMATION. If anti-aliased if false, anti-aliasing is disabled. It is enabled by default. To output multiline text with a specific line spacing, provide a value for line-spacing, expressed as a multiple of the font height. The default is to use 1.05. The string may contain XML character entity references like "À". If convert-chars is true (which is the default) characters of string with CHAR-CODE greater than 127 are converted accordingly. This of course pre-supposes that your Lisp's CHAR-CODE function returns ISO/IEC 10646 (Unicode) character codes.

The return value is an array containing 8 elements representing the 4 corner coordinates (lower left, lower right, upper right, upper left) of the bounding rectangle around the string that was drawn. The points are relative to the text regardless of the angle, so "upper left" means in the top left-hand corner seeing the text horizontally. Set do-not-draw to true to get the bounding rectangle without rendering. This is a relatively cheap operation if followed by a rendering of the same string, because of the caching of the partial rendering during bounding rectangle calculation.

(with-image* (200 200)strings.png
  ;; set background (white) and make it transparent
  (setf (transparent-color)
          (allocate-color 255 255 255))
  (loop for angle from 0 to (* 2 pi) by (/ pi 6)
        for blue downfrom 255 by 20 do
        (draw-freetype-string 100 100 "Common Lisp"
                              :font-name "/usr/X11R6/lib/X11/fonts/truetype/georgia.ttf"
                              :angle angle
                              ;; note that ALLOCATE-COLOR won't work
                              ;; here because the anti-aliasing uses
                              ;; up too much colors
                              :color (find-color 0 0 blue
                                                 :resolve t)))
  (write-image-to-file "strings.png"
                       :if-exists :supersede))



Miscellaneous

Things that didn't seem to fit into one of the other categories...


[Macro]
do-rows (y-var &optional image) declaration* form* => results


This macro loops through all rows (from top to bottom) in turn and executes form* for each row with y-var bound to the vertical index of the current row (starting with 0). It is not affected by WITH-TRANSFORMATION.


[Local macro]
do-pixels-in-row (x-var) declaration* form* => results


This macro is only available within the body of a DO-ROWS form. It loops through all pixels (from left to right) in turn and executes form* for each pixel with x-var bound to the horizontal index of the current pixel (starting with 0). It is not affected by WITH-TRANSFORMATION.


[Macro]
do-pixels (&optional image) declaration* form* => results


This is a shortcut for the previous two macros. It loops through all pixels and executes form* for each pixel. Obviously it only makes sense when used together with RAW-PIXEL.


[Accessor]
raw-pixel => pixel
(setf (raw-pixel) pixel)


This accessor is only available within the body of a DO-PIXELS-IN-ROW form (and thus also within DO-PIXELS forms). It provides access to the "raw" pixel the loop is currently at, i.e. for true color images you access an element of the im->tpixels array, for palette-based images it's im->pixels. Read the original GD documentation for details. Make sure you know what you're doing if you change these values...
* (with-image* (3 3 t) ; true-color image with 3x3 pixels
    (draw-rectangle* 0 0 2 2 :color (allocate-color 0 0 0)) ; black background
    (draw-line 0 0 2 2 :color (allocate-color 255 255 255)) ; white line
    (do-pixels ()
      ;; loop through all pixels and change those which arent't black
      (unless (zerop (raw-pixel))
        (decf (raw-pixel) #xff)))
    (do-rows (y)
      ;; loop through all rows
      (format t "Starting with row ~A~%" y)
      (do-pixels-in-row (x)
        ;; loop through all pixels in row
        (format t "  Pixel <~A,~A> has value ~X~%" x y (raw-pixel)))
      (format t "Done with row ~A~%" y)))
Starting with row 0
  Pixel <0,0> has value FFFF00 ; the line is yellow now
  Pixel <1,0> has value 0
  Pixel <2,0> has value 0
Done with row 0
Starting with row 1
  Pixel <0,1> has value 0
  Pixel <1,1> has value FFFF00
  Pixel <2,1> has value 0
Done with row 1
Starting with row 2
  Pixel <0,2> has value 0
  Pixel <1,2> has value 0
  Pixel <2,2> has value FFFF00
Done with row 2
NIL


[Accessor]
interlacedp &optional image => interlaced
(setf (interlacedp &optional image) interlaced)


Gets or sets whether image will be stored in an interlaced fashion.


[Function]
differentp image1 image2 => different


Returns false if the two images won't appear different when displayed. Otherwise the return value is a list of keywords describing the differences between the images.


[Function]
copy-image source destination source-x source-y dest-x dest-y width height &key resample rotate angle resize dest-width dest-height merge merge-gray => destination


Copies (a part of) the image source into the image destination. Copies the rectangle with the upper left corner (source-x,source-y) and size width x height to the rectangle with the upper left corner (dest-x,dest-y). If resample is true pixel colors will be smoothly interpolated. If resize is true the copied rectangle will be strechted or shrunk so that its size is dest-width x dest-height. If rotate is true the image will be rotated by angle. In this particular case dest-x and dest-y specify the center of the copied image rather than its upper left corner! If merge is true then it has to be an integer in the range 0-100 and the two images will be 'merged' by the amount specified. If merge is 100 then the source image will simply be copied. If instead merge-gray is true the hue of the source image is preserved by converting the destination area to gray pixels before merging. The keyword arguments resample, rotate, resize, merge, and merge-gray are mutually exclusive (with the exception of resample and resize). angle is assumed to be specified in degrees if it's an integer, and in radians otherwise. This function is not affected by WITH-TRANSFORMATION.


[Function]
copy-palette source destination => destination


Copies the palette of the image source to the image destination attempting to match the colors in the target image to the colors in the source palette.


[Function]
true-color-to-palette &key dither colors-wanted image => image


Converts the true color image image to a palette-based image using a high-quality two-pass quantization routine. If dither is true, the image will be dithered to approximate colors better, at the expense of some obvious "speckling." colors-wanted can be any positive integer up to 256 (which is the default). If the original source image includes photographic information or anything that came out of a JPEG, 256 is strongly recommended. 100% transparency of a single transparent color in the original true color image will be preserved. There is no other support for preservation of alpha channel or transparency in the destination image.
(with-image* ((+ 256 384) 384 t)
  (let ((white (allocate-color 255 255 255))
        (red (allocate-color 255 0 0))
        (green (allocate-color 0 255 0))
        (blue (allocate-color 0 0 255))
        (vertices (list 64 0 0 128 128 128))
        (image-width (image-width))
        (image-height (image-height)))
    (setf (transparent-color) white)
    (draw-rectangle* 0 0 image-width image-height :color white)
    ;; "demoin.png" is part of the GD distribution
    (with-image-from-file (in-file "demoin.png")
      (copy-image in-file *default-image*
                  0 0 32 32 192 192
                  :resize t
                  :dest-width 255
                  :dest-height 255
                  :resample t)
      (multiple-value-bind (in-width in-height)
          (image-size in-file)
        (loop for a below 360 by 45 do
              (copy-image in-file *default-image*
                          0 0
                          (+ 256 192 (* 128 (cos (* a .0174532925))))
                          (- 192 (* 128 (sin (* a .0174532925))))
                          in-width in-height
                          :rotate t
                          :angle a))
        (with-default-color (green)
          (with-thickness (4)
            (draw-line 16 16 240 16)
            (draw-line 240 16 240 240)
            (draw-line 240 240 16 240)
            (draw-line 16 240 16 16))
          (draw-polygon vertices :filled t))
        (dotimes (i 3)
          (incf (nth (* 2 i) vertices) 128))
        (draw-polygon vertices
                      :color (make-anti-aliased green)
                      :filled t)
        (with-default-color (blue)
          (draw-arc 128 128 60 20 0 720)
          (draw-arc 128 128 40 40 90 270)
          (fill-image 8 8))
        (with-image (brush 16 16 t)
          (copy-image in-file brush
                      0 0 0 0
                      in-width in-height
                      :resize t
                      :dest-width (image-width brush)
                      :dest-height (image-height brush))
          (draw-line 0 255 255 0
                     :color (cons (make-brush brush)
                                  (list nil nil nil nil nil nil nil t))))))
    (with-default-color (red)
      (draw-string 32 32 "hi" :font :giant)
      (draw-string 64 64 "hi" :font :small))
    (with-clipping-rectangle* (0 (- image-height 100) 100 image-height)
      (with-default-color ((make-anti-aliased white))
        (dotimes (i 100)
          (draw-line (random image-width)
                     (random image-height)
                     (random image-width)
                     (random image-height))))))
  (setf (interlacedp) t)
  (write-image-to-file "demoout.png"
                       :if-exists :supersede)
  (true-color-to-palette)
  (write-image-to-file "demooutp.png"
                       :if-exists :supersede))

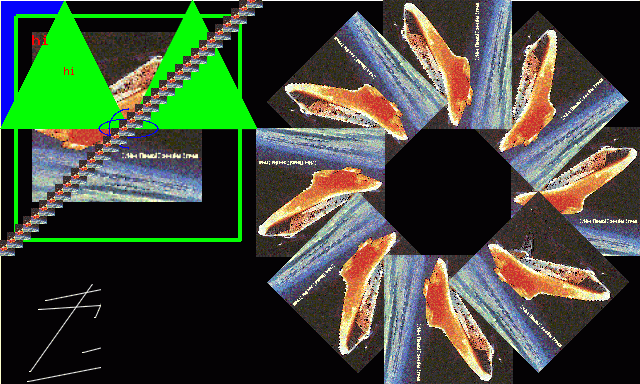

This last example is the demo which comes with GD. The equivalent C code is here.



Acknowledgements

Thanks to Thomas Boutell for GD and thanks to Kevin Rosenberg for UFFI without which CL-GD would not have been possible. Kevin was also extremely helpful when I needed functionality which wasn't yet part of UFFI. Thanks to Hans Hübner for the GIF patches. Thanks to Manuel Odendahl for lots of useful patches. Thanks to Luis Oliveira for CLISP/CFFI support and to Bryan O'Connor for OpenMCL support.

$Header: /usr/local/cvsrep/gd/doc/index.html,v 1.77 2009/11/23 17:04:47 edi Exp $

BACK TO MY HOMEPAGE
